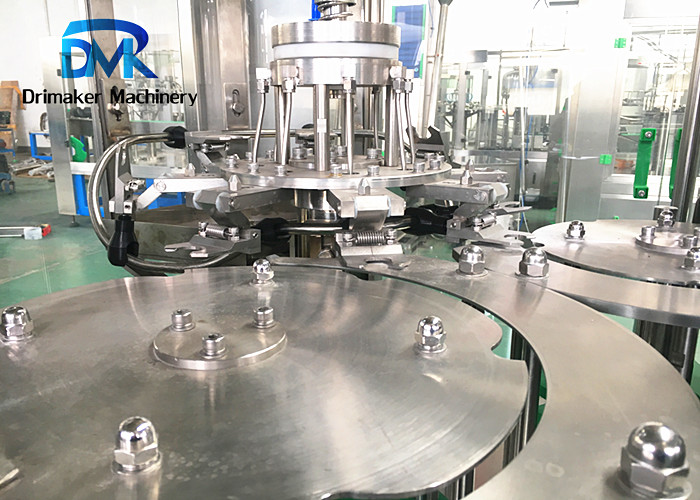

2000BPH Automatic Washing Filling Capping Machine (3-in-1) CGF8-8-3
Water bottling machine description:
Automatic Washing Filling Capping Machine (3-in-1) CGF8-8-3 is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger.
Water bottling machine features:
| No | Details |
| 1 | SUS304 material is used for all liquid contacting parts |
| 2 | Micro negetive pressure filling principle makes sure the stable liquid level |
| 3 | Use electronic components from world-renowned electronic brands |
| 4 | It will not fill water and do the capping if there is no cap in working position. |
| 5 | All working parts are driven by one motor with belt to make sure machine running situation |
| 6 | Easy to operate, save the cost for workers. |
Water bottling machine parameters:
| Item | CGF8-8-3 | CGF12-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Capacity (bottles per hour) | 2000- 3000 | 3000- 4000 | 5000- 6000 | 8000-10000 | 10000-12000 | 14000-16000 | 20000-24000 |
| Suitable bottle diameter | 50-90mm 200-2000ml |
| Rinsing pressure kg/cm2 | 2-3 |
| Machine weight KG | 1500 | 2500 | 3500 | 4000 | 5000 | 7000 | 9000 |
| Machine size L*W*H (mm) | 1900*1600 *2400 | 2400*1600 *2400 | 2400*1830 *2400 | 3100*2200 *2400 | 3600*2500 *2400 | 4000*2800 *2400 | 5400*4200 *2400 |
Water bottling machine description:
1. Bottle rinsing part adopts compact structure, which ensures running situation.
2. Bottles enter into rinsing part by stare wheel, then clamp will catch bottle automatically.
3. The power of the bottle rinsing part is transmitted by the internal drive system of the frame through the gears.
4. Rinsing nozzle will inject purified to clean bottle inside.
5. Using high speed filling valve, the liquid level is accurate without liquid loss, to ensure the filling process requirements.
6. With automatic structure, machine can reach the purpose of no bottle no filling, which can save a lot of water.
7. The float mode of liquid cylinder level is controlled by float.
8. Parts in contact with liquid material are made of high quality stainless steel, no dead Angle, easy to clean.
9. It adopts efficient cap loading system and has perfect automatic control and protection device.
10. In order to suitable for various types caps, we will manufacture special cap mould according to customer cap sample.
11. Tooth profile device is used in choosing caps.
12. There is cap decting device at the bottom of cap slide, which make sure there is no inverse caps.
