Automatic 5 Gallon Bottle Washing Filling Capping Machine Easy Operation Equipment
Gallon filling machine description:
Microcomputer automatic washing and filling machine is a special equipment for automatic filling of pure water. It can also be used for the filling of distilled water, mineral water and other aseptic liquid. This equipment sets washing bottle, filling, cover, cover and finished products to send out as one assembly line operation, effectively prevent the pure water may occur in the filling process of secondary pollution.
Gallon filling machine features:
The equipment adopts 380V(220V)50HZ alternating current, the control system adopts advanced programmable control system and pneumatic control system programming and solidification mode, and selects high measurement digital display, the operator can operate according to the display. Reliable performance, easy operation, simple maintenance.
The machine is compact in structure, occupies a small area of workshop, works efficiently and is stable and reliable, with high degree of automation. Operators only need two people, is the mechanical and electrical gas trinity of automatic barrel equipment.
Gallon filling machine parameters:
| Item | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Capacity
bottles per hour | 100-120 | 250-300 | 350-450 | 550-600 | 800-1000 |
| Machine weight
KG | 300 | 450 | 500 | 750 | 900 |
| Filling head | 1 | 2 | 3 | 4 | 6 |
| Barrel type | 3 & 5 gallon barrel |
| Barrel dimension | φ270×490 (can be customiazed) |
| Material | High quality stainless steel |
| Compressed air pressure | 0.4~0.6Mp |
| Barrel volume | 18.9L |
Gallon filling machine details description:
Bottle rinsing:
There are several times rinsing with different liquid, sucha as disinfecting water, hot alkali water, clean water, etc. It only needs 1 person to put empty bottle into the bottle putting position, then machine will deliver bottle to every rinsing positions. Rinsing nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down.

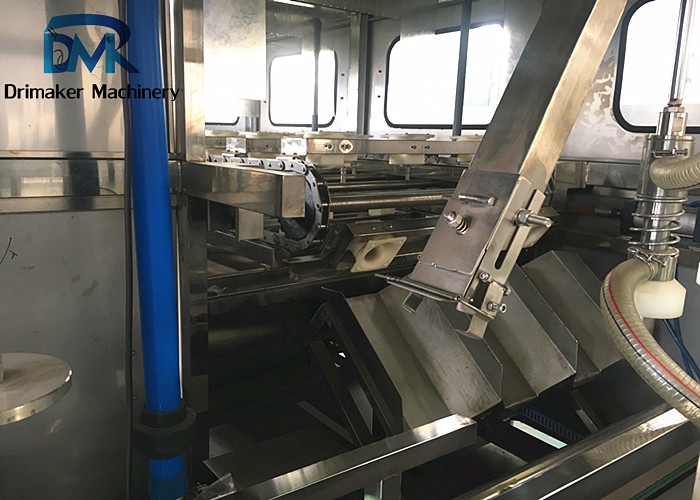

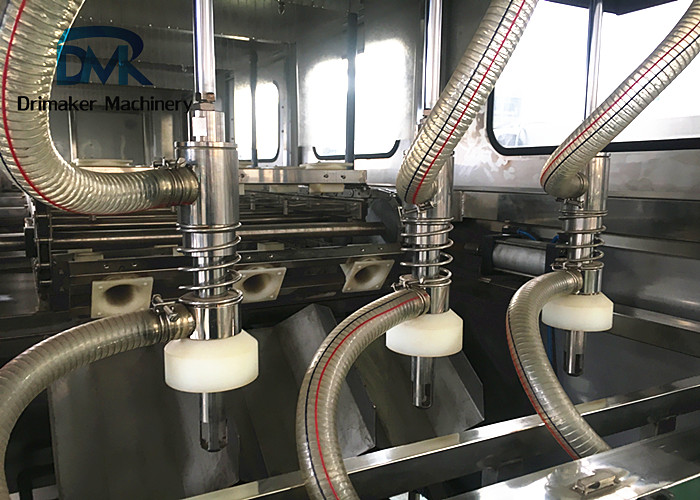

Bottle filling:
After rinisng, the clean bottle, through the bottle washing transmission mechanism, fall on the push bottle rack, the push bottle cylinder moves to push the empty bottle to the filling position, start filling, filling time by using according to the need to adjust.
Capping:
This machine adopts 1 pcs roller capping,automatic cap loading susye, helps bottle get the cap automatically, then roller capping system will help press the cap step by step during the bottle moving, which can save production time. and whole capping part is
fully covered in the machine, so the process is very clean.
Cap loader:
It is equipped with a cap loader system on the top of machine, people only need to caps into this tank of cap loading system, then caps will be automatically drop into cap tunnel in right way.
Gallon Filling Production Line Equipment:
Automatic cap pulling machine, automatic inside/outside brush barrel machine, automatic bucket loading device, in/out barrel conveying, barreled water filling machine, automatic capping machine, lamp inspection equipment, automatic film covering machine, steam film shrinking machine, inkjet machine, automatic bucket bagging machine, palletifier.
